When using oAW with Java(Beans) based metamodels the most annoying thing is the lack of support for arrays and generic collections (known as Bug#212134).

In fact oAW does already support generics and arrays at runtime, but the editor is not aware of inner types or handling of arrays. The common workaround is to do a type cast whenever accessing a collection value like this:

«FOREACH ((List[Entity])entities).field AS f»...

I found that it was time to solve this issue. One thing to remember is that the implementations of the metamodel for JavaBeans are totally different for the runtime and the editor. While the runtime uses Java reflection to resolve type information, the UI uses JDT. This is more performant for the UI side, but requires implementing each feature twice, or at least assure that all feature would work for runtime and UI the same.

The main task to solve was dealing with JDTs type signatures. The return types of properties (and all other signatures as well) have a coding defined in class Signature. Signatures of primitives, collections and arrays must be translated to oAW’s representation. For example, the signature [Qjava.util.List<QString;>; must be translated to List[List[String]] (the ‘[‘ denotes an array, so the signature declares an array of lists of strings).

This Screenshot shows the same example now without error markers. Also content assist will detect now arrays as List properties.

When generating code one obvious thing that costs performance is doing the actual IO to write the generated text to disk. IO is a bottleneck and needs to be considered intensively when creating large code generators.

I wondered how fast Xpand is in generating files. So I set up a test project that produces simple Java beans with configurable number of files and bean properties per file. Further I wanted to examine the performance of the JavaBeautifier, so I ran optionally the generator with the common used JavaBeautifier postprocessor, which makes use of Eclipse’s JDT.

The project does not need any metamodel nor read any model and has only very few Xpand and Xtend templates. All influences that could influence the measurement of Xpand’s code generation and output should be reduced to a minimum. This is no real-world scenario, since evaluating the model and calling numerous templates will also make up a significant amount of the overall performance. But I wanted to focus only on output performance.

The test project should produce different number of files (1, 10, 100, 1000, 10000) with different sizes. The file size was determined by the number of Java bean properties (instance variable, getter and setter), which was configured with 1, 10, 100 and 1000 properties. Also the file size depends on whether it is formatted by the JavaBeautifier or not. The formatted code is more compact than the produced text, mainly because of whitespace production.

The following table shows the produced file sizes (in kB) depending on number of properties and formatting.

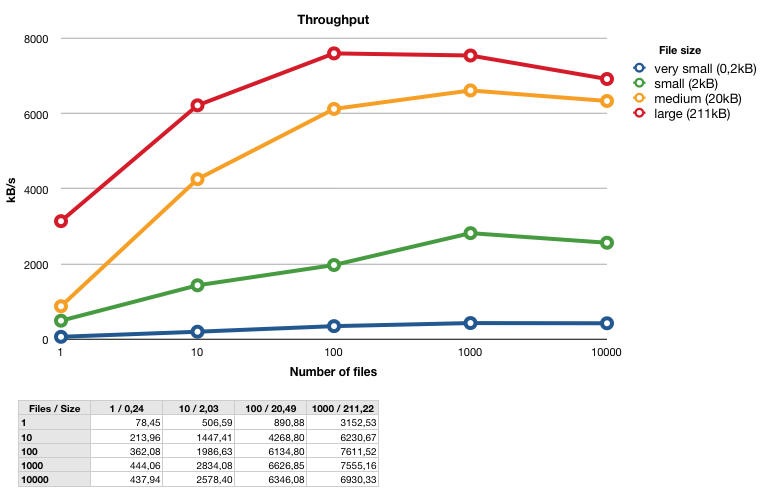

Now let’s take a look at the actual throughput. The graph lines show throuput of different file sizes. The measured throughput consists of two parts:

1. Creating a string representation of the generated file in memory
2. Writing the string buffer to disk

This diagram reveals that the throughput gets better the larger files are. Small files have a hugher overhead. What also can be seen is that with increasing number of iterations performance increases, but at some point it decreases slightly. I assume it has to do with increasing garbage collection, without being able to confirm this yet. Maybe I examine this later.

I was stunned by the maximum throughput with over 7600 kB/s. Wow! I did not expect that. Looking into the output folder showed my that I really produced hundreds of megs files.

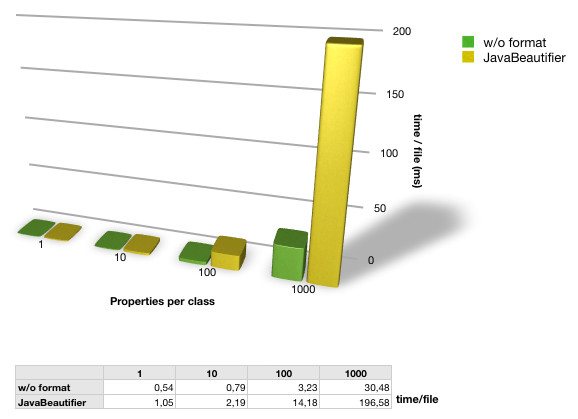

This diagram reveals how cost intensive code formatting is. The measured average file creation time was taken from producing 1000 files of different sizes, once without any formatting, the other time with invoking the JavaBeautifier.

As can be seen from this diagram formatting the Code is very costly, growing exponential with file size, starting with factor 2 at an unrealistic small file size. So it is likely that a markable amount of time is eaten up by code formatting.

I want to examine in the future how the output performance can be improved. Now I have a basis for comparing my changes. And hopefully this information is also of use for you.

You can download the sample project here.
